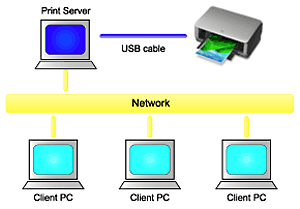

If multiple computers are being used in the network environment, you can share the printer connected to one computer with other computers.
The Windows versions of the computers connected to the network do not necessarily have to be the same.
Describes the procedure for setting up a computer directly connected to a printer with a USB cable.
Describes the procedure for setting up those computers that will use this printer through the network.
When you execute print, the data is sent through the print server system to the printer.
Caution
In case an error occurred when a document is printed by the client system to a shared printer, the error message of Canon IJ Status Monitor will be displayed both on the client system and the print server system. For regular printing, Canon IJ Status Monitor will be displayed only on the client system.
Caution
Install the printer driver from the Setup CD-ROM that accompanies the machine on the print server system and each of the client systems according to the OS of each system.
Settings on Print Server
To use a printer in a network, set printer sharing on the print server system.
The procedure for setting up the print server systems is as follows:
1. Install the printer driver on the print server system
2. Select items from the Start menu as shown below:
The Printers window (Windows Vista, Windows 2000) or Printers and Faxes window (Windows XP) is displayed.
3. Click the icon for the model name of printer to be shared
Caution
4. Set sharing
Select Share this printer (Windows Vista, Windows XP) or Shared as (Windows 2000) on the Sharing tab to set a shared name as desired, and click OK.
Caution
This completes the setup on the print server system. Next, set up the client systems.
Settings on Client PC
After setting up the print server system, set up the client system.
The procedure for setting up the client systems is as follows:
Windows Vista
1. Install the printer driver on the client systems
To install the driver, load the Setup CD-ROM that comes with the machine, and select Custom Install.
Caution
2. Start the wizard
Select the Start menu -⋗ Network -⋗ Add a printer.
The Add Printer window appears.
3. Add a printer
Select Add a network, wireless or Bluetooth printer, and click the icon for the printer that you have configured on the print server system to be shared, and then click Next.
Caution
4. Complete the setup
Take the appropriate action as described on the screen and then click Finish.
The icon for the shared printer will be created in the Printers window.
This completes the setup on the client systems. You can now share the printer in the network.
Windows XP/Windows 2000
1. Install the printer driver on the client systems
To install the driver, load the Setup CD-ROM that comes with the machine, and select Custom Install.
Caution
During the installation, a screen prompting you to turn the printer on appears. Click Manual Selection and then select an appropriate port to complete your installation.
2. Start the wizard
When Welcome to the Add Printer Wizard screen appears, click Next.
3. Add a printer
Select A network printer, or a printer attached to another computer (Windows XP) or Network printer (Windows 2000), then click Next.
On the Specify a Printer window (Windows XP) or Locate Your Printer window (Windows 2000), click Next and then search for the print server system.
Click the icon for the printer that you have configured on the print server system to be shared, and then click Next.
Caution
4. Complete the setup
Take the appropriate action as described on the screen and then click Finish.
The icon for the shared printer will be created in the Printers and Faxes window (Windows XP) or Printers window (Windows 2000).
This completes the setup on the client systems. You can now share the printer in the network.
Restrictions on Printer Sharing
These are restrictions that apply if you are using a printer in a network environment. Check the restrictions for the environment you are using.
If you are sharing a printer in a network
- A print completion message may be displayed. To disable the message display, follow the procedure below.
Press the Alt key from the Printers window on the client system. Open Run as administrator -⋗ Server Properties... from the displayed File menu.
Uncheck Show informational notifications for network printers on the Advanced tab, and then restart the computer.
Open Server Properties from the File menu of the Printer and Faxes window (Windows XP) or the Printers window (Windows 2000) on the print server system.
Uncheck Notify when remote documents are printed on the Advanced tab, and then restart the computer.
- The bi-directional communication function is disabled so that the correct printer status may not be recognized.
If a client user opens the printer driver properties and then clicks OK with the Enable bidirectional support check box on the Ports tab unchecked, the bi-directional function of the printer server system may also be disabled.
In this case, check Enable bidirectional support check box on both the print server system and the client system.
- When you print from a client system, you cannot use Canon IJ Preview.
- If the functions on the Maintenance tab cannot be set properly from a client system, they may be grayed out. In this case, change the settings from the print server.
When you change the settings of the print server, you should delete the icon of the shared printer from the client system, and then specify the shared settings again in the client system.
If the same printer driver is installed in the print server system and the client system as the local printer
