Views

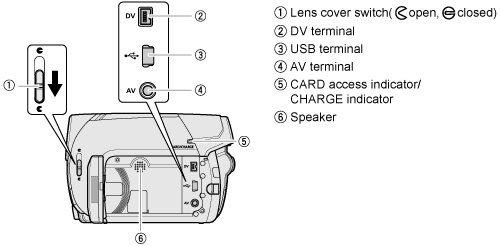

Left side view

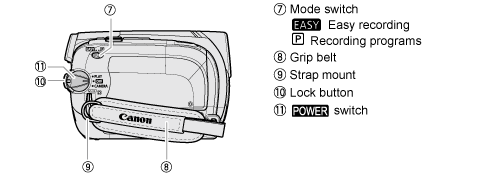

Right side view

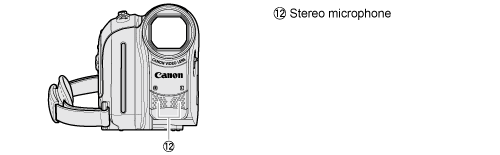

Front view

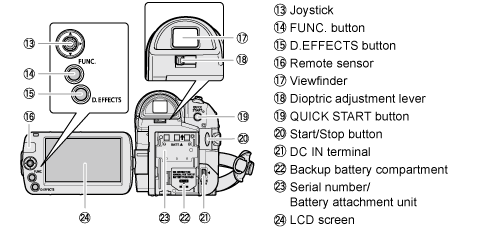

Back view

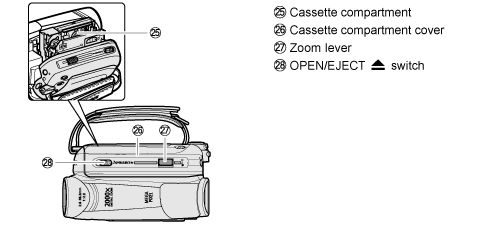

Top view

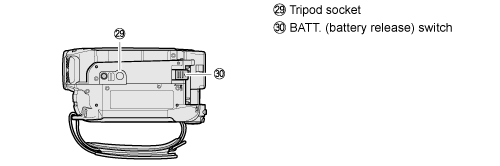

Bottom view
Names of buttons and switches other than the joystick are indicated within a "button" frame (for example ).

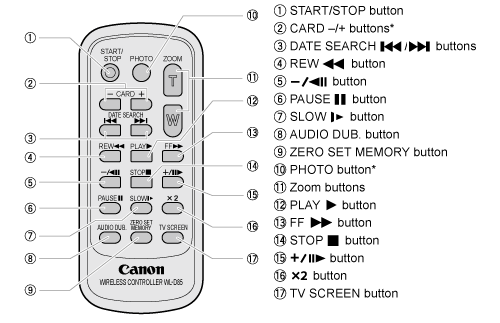

Wireless Remote
Wireless Controller WL-D85
* Still images cannot be recorded or played back using this model. Please disregard these buttons.
