Solution
The environment necessary for the wireless connectionThe procedures for the wireless connection
1. Select the wireless setup method.
2. Perform the wireless setup depending on the setup method
Install the Software (Information)
The environment necessary for the wireless connection
Before connecting this printer to the network, confirm the following two items, (A) and (B).
(A) Access point or router (supporting IEEE802.11b/g/n)
An access point or router is a relay device which connects not only the Internet and network devices such as a computer or printer, but also one network device to another.
So, your access point or router must be properly set before you go to the next setup step.
(B) The computer to be used with the printer must be connected to the network.
In order to confirm whether the computer to be used with the printer is connected to the network, try to browse the Internet website from the computer.
The procedures for the wireless connection

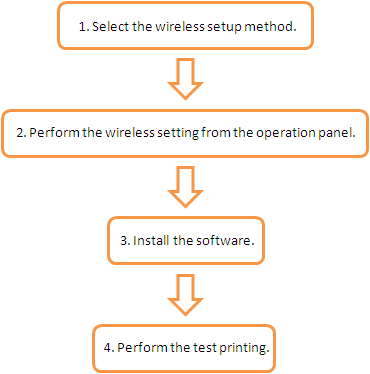

In order to use the printer in a wireless connection, follow the procedures below.
In order to use the printer in a wireless connection even after the USB connection is completed, follow the procedures below to perform the wireless setup again.
1. Select the wireless setup method.
To use the printer in a wireless connection, select the wireless setup method you prefer.
2. Perform the wireless setting from the operation panel.
Perform the setting based on the setup method you selected in the step 1 using the operation panel.
3. Install the software.
Install the software into the computer used with the printer.
4. Perform the test printing.
Try wireless printing to confirm whether the wireless setup has been performed properly.
1. Select the wireless setup method.
To use the printer in the wireless connection, first select the wireless setup method.
- USB connection:
Perform the wireless setup manually.
In most cases, you can create a wireless environment using this setup method.
- WPS connection:
If the access point or the router you are using supports the WPS function, you can use this setup method to connect the printer in a wireless connection.
Confirm that the access point or the router you are using has the WPS button.
Caution
2. Perform the wireless setup depending on the setup method
Caution
Screens are based on Windows 7 operating system Home Premium. Actual screens may differ depending on the OS version.
1. Insert the CD-ROM into the computer.
Caution
If the USB cable is already connected, unplug it. If a message appears on the computer, click Cancel.
2. Click Run Msetup4.exe on the AutoPlay screen, then click Yes or Continue on the User Account Control dialog box.
If the User Account Control dialog box reappears in following steps, click Yes or Continue.
Caution
If the CD-ROM does not autorun:
Double-click (My) Computer ⋗ CDROM icon ⋗ MSETUP4.EXE.
3. Click Change Connection Method.
4. Click Wireless Connection.
Follow the instruction and go to step 5.
Caution
If an error message is displayed, see "Troubleshooting" at the right.
5.
- WPS connection:
When the screen left above is displayed, go to the step (A).
When the screen right above is displayed, go to the step (B).
(A) Click Push Button Method.
-⋗ Go to 6.
(B) Click Other Methods.
Click WPS.
- USB connection:
Click Other Methods.
Click Wireless Setup Using the USB cable.
6. Follow the instruction until the screen below is displayed.
Network connection setting is complete.
Click Next.
7. Select your place of residence, then click Next.
8. Select a country or region, then click Next.
Install the Software (Information)
Let’s perform the software installation.
1. Click Next.
Follow any on-screen instructions to proceed with the software installation.
2. When the Setup Completion dialog box appears, click Complete.
3. Click Next.
4. Click Exit to complete the installation.
Remove the Setup CD-ROM and keep it in a safe place.
5. Solution Menu EX starts.
The end of the procedure of the wireless LAN setup.
