PIXMA MX420 Support
FAQ and troubleshooting

How to perform the wired LAN setup (Macintosh)

Content Id: 8201021200


Wired Setup

Before Configuring Wired Settings

Caution

Make sure that the computer and router are connected.

After confirming the connection, perform the following instructions to add (connect) the machine to the network.

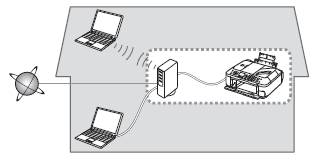

(A) Internet

(B) Router, etc.

- Notes on Wired Connection

The configuration, router functions, setup procedures and security settings of the network device vary depending on your system environment. For details, refer to your device's instruction manual or contact its manufacturer.
In an office setup, consult your network administrator.
If you connect to a network that is not protected with security measures, there is a risk of disclosing data such as your personal information to a third party.
The machine cannot be used over a wireless and wired connection at the same time.
If an error message appears or if you have trouble with the network connection, refer to the printed manual: Network Setup Troubleshooting.

1.

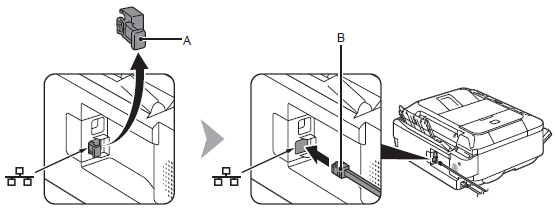

Remove the Cap (A), then connect a network device (router, etc.) with an Ethernet cable (B).

2.

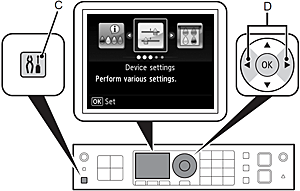

(1) Press the Setup button (C).

(2) Use the or button (D) to select Device settings.

(3) Press the OK button.

3.

Use the or button (E) to select LAN settings, then press the OK button.

4.

Select Change wireless/wired, then press the OK button.

5.

Select Wired LAN active, then press the OK button.

Install the Software (Network Connection)

To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer’s hard disk. The installation process takes about 20 minutes. (The installation time varies depending on the computer environment or the number of application software to be installed.)

Caution

Quit all applications before installation.
Log on as the administrator (or a member of the Administrators group).
If the firewall function of your security software displays a warning message, set the security software to always allow access.

Caution

Easy-WebPrint EX

Easy-WebPrint EX is Web print software that is installed on the computer when installing the supplied software. Safari 4 or later (Mac OS X v.10.5 or later) is required to use this software. An Internet connection is required for installation.

1.

Turn on the computer, then insert the Setup CD-ROM into the CD-ROM drive.

2.

Double-click the Setup icon of the CD-ROM folder to proceed to the following screen. Enter your administrator name and password, then click OK.

If the CD-ROM folder does not open automatically, double-click the CD-ROM icon on the desktop.

If you do not know your administrator name or password, click the help button, then follow the on-screen instructions.

3.

Select your place of residence, then click Next.

Caution

If the Select Language screen appears, select a language, then click Next.

4.

Select a country or region, then click Next.

5.

Click Easy Install.

The drivers, application software, and on-screen manuals are installed.

Caution

If you want to select particular items to install, click Custom Install.

6.

Click Install.

7.

Select Use the printer with wired LAN connection, then click Next.

Follow any on-screen instructions to proceed with the software installation.

8.

When the Printer Detection screen appears, click Next.

Caution

If the Printer Connection screen appears instead of the screen above, the connection method is not correctly selected in 7.

- Follow on-screen instructions and proceed with the installation. Click Exit on the installation complete screen, then start again from 2 and select the connection method, which you select in 7.

9.

On the Canon IJ Network Tool screen, select xxx series in Printers, then click Next.

Caution

If the Check Printer Settings dialog box is displayed or the machine is not displayed in the Canon IJ Network Tool screen, refer to the printed manual: Network Setup Troubleshooting.

Registration

Caution

The alphanumeric characters after Canon xxx series is the machine’s Bonjour service name or MAC address.
If the machine is not detected, make sure of the following.

- The machine is turned on.

- The firewall function of any security software is turned off.

- The machine is connected to the network device with the Ethernet cable.

1.

When the Register Printer and Scanner screen appears, click Register Printer.

Mac OS X

v.10.6.x v.10.5.x -⋗ 2-A

v.10.4.11 -⋗ 2-B

2-A Mac OS X v.10.6.x/v.10.5.x

(1)

Select Canon xxx series canonijnetwork and click Add.

-⋗ Go to 3

2-B Mac OS X v.10.4.11

(1)

When the Printer List window appears, click Add.

Caution

When the You have no printers available. screen appears, click Add.

(2)

Click More Printers in the Printer Browser window.

(3)

Select Canon IJ Network in the pop-up menu, select Canon xxx series in the list of printers, then click Add.

(4)

Make sure that Canon xxx series is added to the list of printers.

-⋗ Go to 3

3.

When the Register Printer and Scanner screen appears, click Register Scanner.

4.

Select Canon xxx series on the Canon IJ Network Scanner Selector EX screen, then click OK.

5.

Click Next on the Register Printer and Scanner screen.

Install the Software (Information)

1.

Click Next.

Follow any on-screen instructions to proceed with the software installation.

- Important Information for the Installation

If the serial number is not displayed on the registration screen, input the number found inside the machine.

Caution

If the power is on, the FINE Cartridge Holder will move when the Scanning Unit (Cover) (A) is opened.

Caution

The User Registration screen will only be displayed when Europe, Middle East, Africa is selected on the Select Your Place of Residence screen.

If the Extended Survey Program screen appears

If you can agree to Extended Survey Program, click Agree.

If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine’s functionality.)

2.

Click Exit to complete the installation.

It is necessary to restart the computer before scanning using the Operation Panel on the machine for the first time.

3.

Solution Menu EX starts when clicking OK in the Canon Solution Menu EX dialog.

Remove the Setup CD-ROM and keep it in a safe place.

Caution

The buttons displayed on Solution Menu EX may vary depending on the country or region of purchase.

Use from Additional Computers

If the machine is already connected to a wireless/wired connection, it can be used from additional computers on the same network.

To use from additional computers

1. Insert the Setup CD-ROM into the computer from which you want to use the machine.

2. Follow the on-screen instructions to install the software.

Other settings are not required.

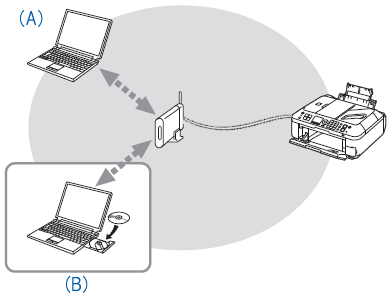

(A) Computer from which the machine can be used currently

(B) Additional computers on the same network

It enables the computer to use the machine.

For details on the software installation procedure, refer to [ How to perform the wired LAN setup so that other computers can share the same printer (Macintosh) ].
