Wired LAN connection of your printer to an access point

Before Configuring Wired Settings

Caution

1. You will need an Ethernet cable (sold separately).

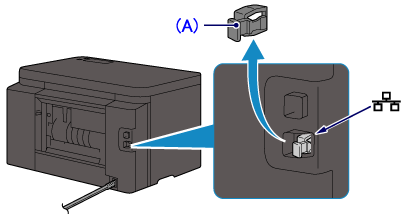

2. Remove the Cap (A) from the port located on the left side at the back of the printer.

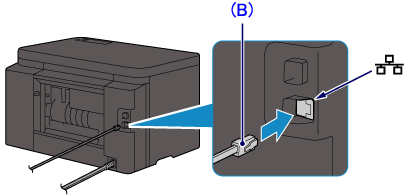

3. Connect the printer and a network device (router, etc.) with an Ethernet cable (B).

Caution

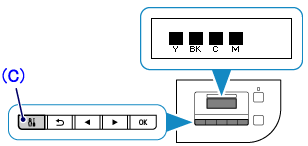

4. Confirm that the following screen is displayed.

If another screen is displayed, press the Setup button (C) on the printer.

Press the Setup button.

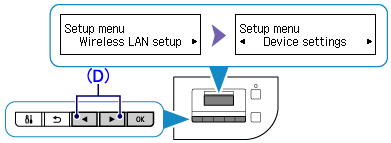

5. Use the button (D) to select [Device settings].

Press the OK button.

6. Select [LAN settings].

Press the OK button.

7. Select [Change LAN].

Press the OK button.

8. Select [Wired LAN active].

Press the OK button.

9. When the left screen appears, press the Setup button.

When connection is complete, [LAN] appears at the right of the screen.

The wired LAN setup is completed.

Install the Software.

-⋗ [ How to install the software from the Setup CD or from the Setup & Manual site (wired LAN connection) ]
