How to perform the wireless LAN setup using WPS connection(Windows)

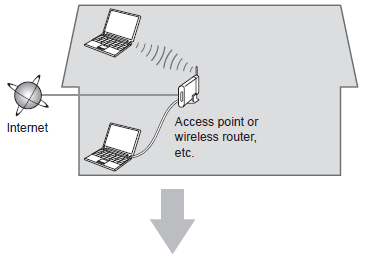

Before connecting the machine to the network, the computer needs to be connected to the network. Make sure that configuration of the computer and access point or router is complete.

Add (connect) the machine to the network.

Notes on Wireless Connection

The configuration, router functions, setup procedures and security settings of the network device vary depending on your system environment. For details, refer to your device's instruction manual or contact its manufacturer.

In an office setup, consult your network administrator.

If you connect to a network that is not protected with security measures, there is a risk of disclosing data such as your personal information to a third party.

If an error message appears or if you have trouble with the network connection, refer to the printed manual: Network Setup Troubleshooting.

Caution

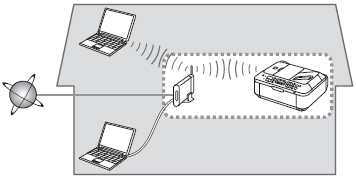

An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without using an access point, is not supported. Be sure to prepare an access point.

Wireless Setup Using WPS (Wi-Fi Protected Setup)

1.

Use the Menu button (A) to select Device　settings.

2.

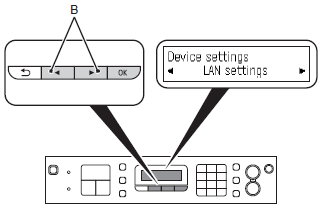

Use the or button (B) to select LAN settings,

then press the OK button.

The LAN settings screen is displayed.

3.

Select WLAN active/inactive, then　press the OK button.

The WLAN active/inactive screen is　displayed.

4.

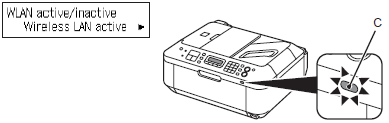

Select Wireless LAN active, then press the OK button.

When wireless connection is enabled, the Wi-Fi lamp (C) lights blue.

The LAN settings screen is displayed.

5.

Select Wireless LAN setup, then　press the OK button.

The Wireless LAN setup screen is　displayed.

6.

Select WPS, then press the OK button.

The WPS screen is displayed.

7.

Select Push button method, then press the OK button.

The When the access point is ready, press [OK] of the device. screen is displayed.

Caution

To use the PIN code method for setup, select PIN code method in 7, then press the OK button. Follow the onscreen instructions to operate the machine and access point. When the screen in 9 appears, press the OK button.

When the screen in 10 appears, press the COPY button to return to the copy standby screen.

A timeout error occurs if setup is not completed within 10 minutes. If the timeout error screen appears, press the OK button, then perform the setup again and set the new PIN code displayed on the screen to the access point.

8.

Press and hold the WPS button on the access point (for about 5 seconds), then press the OK button on the machine within 2 minutes.

For details on the WPS button pressing, refer to the manual of your access point.

The Connected screen is displayed.

The Wi-Fi lamp (blue) flashes while searching for or connecting to an access point.

9.

Press the OK button.

The LAN settings screen is displayed.

Caution

If the timeout error screen appears, press the OK button, then start over from 6.

10.

Press the COPY button (D).

The copy standby screen is displayed.

Install the Software

To use the machine by connecting it to a computer, software including the drivers needs to be copied (installed) to the computer's hard disk. The installation process takes about 20 minutes. (The installation time varies depending on the computer nvironment or the number of application software to be installed.)

Screens are based on Windows Vista Ultimate.

Caution

Quit all running applications before installation.

Log on as the administrator (or a member of the Administrators group).

Do not switch users during the installation process.

Internet connection may be required during the installation. Connection fees may apply. consult the internet service provider.

It may be necessary to restart your computer during the installation process. Follow the onscreen instructions and do not remove the Setup CD-ROM during restarting. The installation resumes once your computer has restarted.

If the firewall function of your security software is turned on, a warning message may appear that Canon software is attempting to access the network. If such a warning message appears, set the security software to always allow access.

Caution

Easy-WebPrint EX

If you are using Internet Explorer 7 or later, you can use the Web print software Easy-WebPrint EX. An internet connection is required for installation.

1.

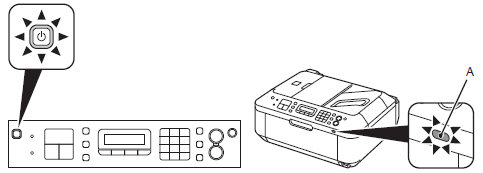

Make sure that the machine is turned on and that the Wi-Fi lamp (A) lights blue.

Caution

It is not necessary to connect the machine to the computer with the Wireless LAN setup cable.

2.

Turn on the computer, then insert the Setup CD-ROM into the CD-ROM drive.

If you are using Windows, the setup program starts automatically.

Caution

If the program does not start automatically, double-click the CD-ROM icon in Computer or My Computer. When the CD-ROM contents appear, double-click MSETUP4.EXE.

Windows 7/Windows Vista -⋗ 3

Windows XP/Windows 2000 -⋗ 4

3.

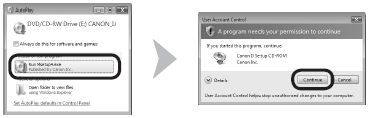

Click Run Msetup4.exe on the AutoPlay screen, then click Continue or Yes on the User Account Control dialog box.

If the User Account Control dialog box reappears in following steps, click Continue or Yes.

4.

Select your place of residence, then click Next.

Caution

If the Select Language screen appears, select a language, then click Next.

5.

Select a country or region, then click Next.

Caution

Displayed only when Europe, Middle East, Africa or Asia is selected on the screen in 4.

6.

Click Easy Install.

The drivers, application software, and on-screen manuals are installed all together.

Caution

If you want to select particular items to install, click Custom Install.

For Windows 7/Windows Vista SP1 or later

You can install the XPS Printer Driver from Custom Install. When installing the XPS Printer Driver, select the MP Drivers at the same time.

7.

Click Install.

Caution

To install Easy-WebPrint EX, you need to connect your computer to the internet at

this stage. (Internet Explorer 7 or later is required.) If an internet connection is not available, it is also possible to install this software later.

8.

Select Use the printer on network, then click Next.

Follow any on-screen instructions to proceed with the software installation.

9.

When the Printer Detection screen appears, click Next.

Caution

If the Printer Connection screen appears instead of the screen above, the connection method is not correctly selected in 8.

Click Cancel and start again from 7, then be sure to select Use the printer on network in 8.

10.

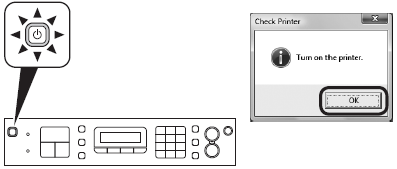

Make sure the machine is turned on, then click OK.

11.

When the Detected Printers List dialog box appears, select Canon MX340 series, then click Next.

Caution

If the machine is not detected, Set Up New Printer dialog box is displayed. Refer to the printed manual: Network Setup Troubleshooting. Make sure there is no problem, then click Redetect.

12.

When the Setup Completion screen appears, click Complete or OK.

Install the Software (Information)

1.

Click Next.

Follow any on-screen instructions to proceed with the software installation.

Important Information for the Installation

Necessary Information for the User Registration

The product serial number is required when registering the product. The serial number is located inside the machine (as shown in the illustration).

Caution

If the power is on, the FINE Cartridge Holder will move when the Scanning Unit (Cover) (A) is opened.

Caution

The User Registration screen will only be

displayed when Europe, Middle East, Africa is selected on the Select Your Place of

Residence screen.

If the Extended Survey Program screen appears

If you can agree to Extended Survey Program, click Agree.

If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)

2.

Click Exit to complete the installation.

If Restart is displayed, follow the instruction to restart the computer.

Caution

Remove the Setup CD-ROM and keep it in a safe place.

The buttons displayed on Solution Menu may vary depending on the country or region of purchase.

3.

Solution Menu starts automatically.

- Using the Machine from Additional Computers

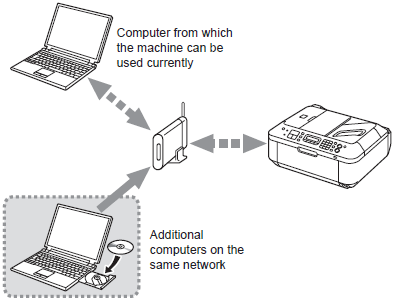

Now that the wireless connection of the machine is complete, it can be used from additional computers on the same network.

Install software including the drivers on the computer from which you want to use the machine. Other settings are not required.

For the software installation procedure, refer to How to perform the wireless LAN setup so that other computers can share the same printer(Windows).
