The image is blurred or out of focus (adjusting focus manually) (XC10)

Autofocus may not work well on the following subjects. In such case, focus manually.

Adjust the zoom before you start the procedure

Reflective surfaces	Subjects with low contrast or without vertical lines	Fast Moving Subjects	Through wet windows	Night Scenes

Making adjustments with the focus ring

You can adjust the focus manually by turning the zoom ring. Focus will be adjusted relative to the speed at which you turn the ring.

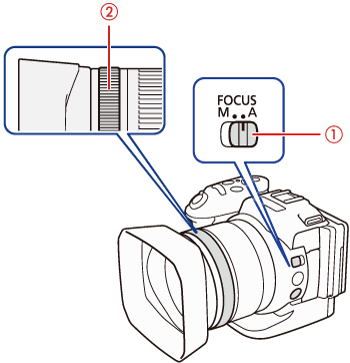

: Focus switch

: Focus ring

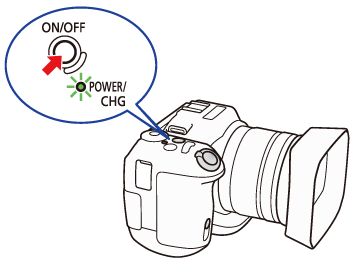

1. Turn the camcorder on.

2. Set the focus switch to [M].

3. Turn the focus ring to focus.

Caution

Making adjustments with the FUNC menu

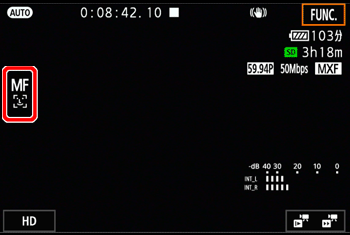

1. You can add [Focus] to the menu.

Press the MENU button.

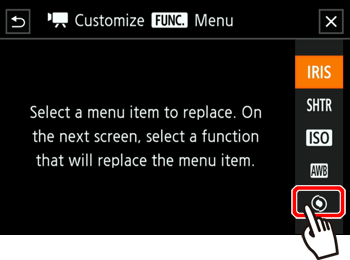

2. Touch [ ] System Setup menu -⋗ [Customize Menu] -⋗ [ Focus].

*[ ] in Photo shooting mode.

3. Focus.

Touch menu -⋗ [ Focus].

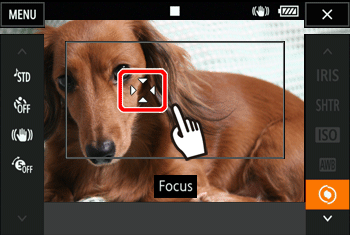

4. Touch a subject that appears inside the white frame. The mark will flash on the selected subject or area and the camcorder will automatically focus where the mark is.

Remote operation using Browser Remote

After completing the necessary preparations, you can adjust the focus remotely from a connected device using the Browser Remote application.

1. Press [MF] to set the focus mode to manual focus.

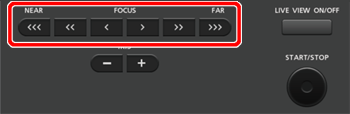

2. Press one of the [FOCUS] controls to adjust the focus as necessary.

Press one of the controls on the [NEAR] () side to focus closer or one of the controls on the [FAR] () side to focus farther away.

There are three levels of adjustment – [ ] is the smallest and ] is the largest.

Caution

Using the Focus Assistance Functions

In order to focus more accurately, you can use two focus assistance functions –peaking, which creates a clearer contrast by emphasizing the outlines of the subject, and magnification, which enlarges the image on the screen. You can use both functions simultaneously for greater effect.

When peaking is activated, the edges of objects in focus will be highlighted in red, blue, or yellow on the screen. In addition, you can choose to switch the screen to black and white further emphasizing the edges.

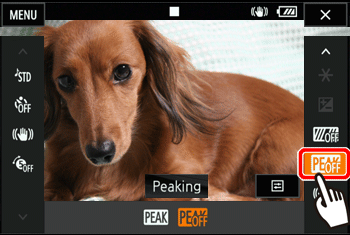

1. Select [Peaking].

Touch menu -⋗ [ Peaking].

2. Display the peaking color.

Touch [ ].

Touch [ ] to turn off the peaking effect.

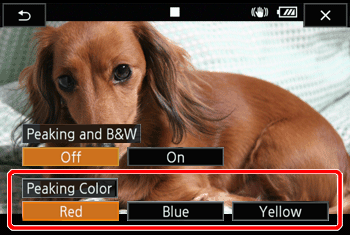

3. Choose the desired color.

Touch [ ], and then touch the desired color.

When the black and white setting is set to [On], the screen display changes to black and white and the peaking color may appear more emphasized.

4. Touch [ ].

Magnification

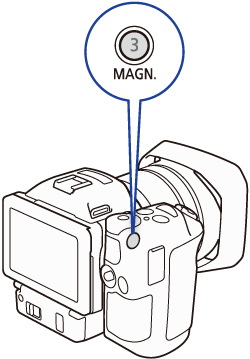

1. Press the [MAGN.] button.

Alternatively, you can use the [ ] -⋗ [ ] -⋗ [OK] setting.

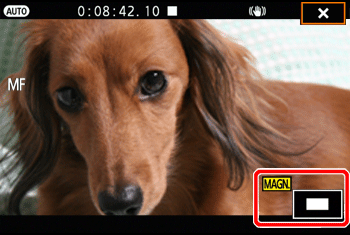

[ ] will appear on the bottom right of the screen and the center of the screen is magnified by approximately 2 time.*

*The magnification that appears on the screen differs based on the video configuration.

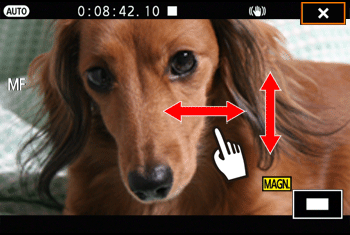

2. If necessary move the white rectangle around and check other parts of the image.

Use the joystick or drag your finger across the screen to move the white rectangle.

Caution
