Aligning the Print Head (Automatic Print Head Alignment)Aligning the Print Head Position from Your Computer (Manual Print Head Alignment)
Aligning the Print Head (Automatic Print Head Alignment)
If printed ruled lines are misaligned or print results are otherwise unsatisfactory, adjust the print head position.
Caution
-⋗ [ Replacing a FINE Cartridge ]
You need to prepare: a sheet of A4 or Letter-sized plain paper (including recycled paper)*
* Be sure to use paper that is white and clean on both sides.
1. Make sure that the power is turned on.
2. Load a sheet of A4 or Letter-sized plain paper in the front tray.
3. Open the output tray extension, open the paper output tray, then extend the paper output support.

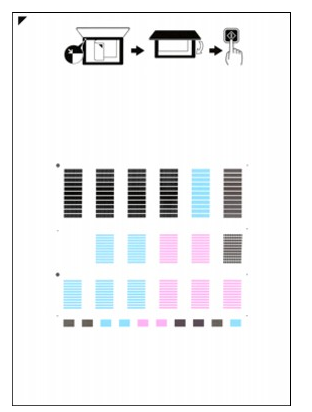

4. Print the print head alignment sheet.
(1) Press the Setup button.
The Setup menu screen will appear.
(2) Use the
(3) Use the
The print head alignment sheet will be printed.
Caution
(4) When the message "Are the patterns fine?" appears, confirm that the pattern is printed correctly, select Yes, then press the OK button.
5. Scan the print head alignment sheet to adjust the print head position.
(1) Confirm the message, then load the print head alignment sheet on the platen glass.

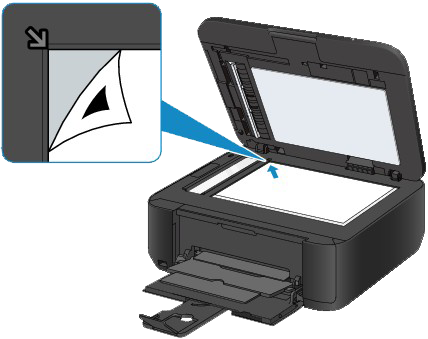

Load the print head alignment sheet WITH THE PRINTED SIDE FACING DOWN and align the mark
Caution
(2) Close the document cover gently, then press the Color or Black button.
The machine starts scanning the print head alignment sheet, and the print head position will be adjusted automatically.
When adjusting the print head position is complete, remove the print head alignment sheet on the platen glass.
Caution
Caution
Refer to [ Aligning the Print Head Position from Your Computer (Manual Print Head Alignment) ] within this webpage.
Aligning the Print Head Position from Your Computer (Manual Print Head Alignment)
Print head alignment corrects the installation positions of the print head and improves deviated colors and lines.
This machine supports two head alignment methods: automatic head alignment and manual head alignment.
To perform automatic head alignment, refer to [ Aligning the Print Head (Automatic Print Head Alignment) ] within this webpage and then execute the function from the operation panel of the machine.
The procedure for performing manual print head alignment is as follows:
1. Open the printer driver setup window.
2. Click Custom Settings on the Maintenance tab.
The Custom Settings dialog box opens.
3. Switch head alignment to manual.
Check the Align heads manually check box.
4. Apply the settings.
Click OK and when the confirmation message appears, click OK.
5. Click Print Head Alignment on the Maintenance tab.
The Start Print Head Alignment dialog box opens.
6. Load paper in the machine.
Load three sheets of A4 size or Letter size plain paper into the front tray.
7. Execute head alignment.
Make sure that the machine is on and click Align Print Head.
Follow the instruction in the message.

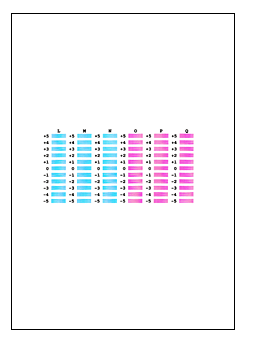

8. Check the printed pattern.
Enter the numbers of the patterns with the least amount of streaks in the associated boxes.
Even if the patterns with the least amount of streaks are clicked in the preview window, their numbers are automatically entered in the associated boxes.
When you have entered all the necessary values, click OK.
Caution
(A) Less noticeable vertical white streaks
(B) More noticeable vertical white streaks
(A) Less noticeable horizontal white streaks
(B) More noticeable horizontal white streaks
9. Confirm the displayed message and click OK.
The second pattern is printed.

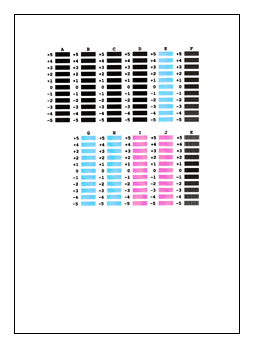

10. Check the printed pattern.
Enter the numbers of the patterns with the least amount of streaks in the associated boxes.
Even if the patterns with the least amount of streaks are clicked in the preview window, their numbers are automatically entered in the associated boxes.
When you have entered all the necessary values, click OK.
Caution
(A) Less noticeable vertical white streaks
(B) More noticeable vertical white streaks
11. Confirm the displayed message and click OK.
The third pattern is printed.

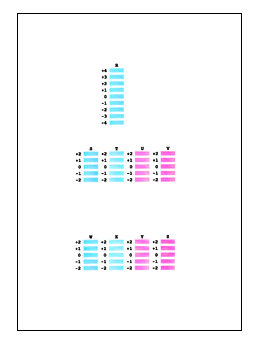

12. Check the printed pattern.
Enter the numbers of the patterns with the least noticeable horizontal stripes in the associated boxes.
Even if the patterns with the least noticeable horizontal stripes are clicked in the preview window, their numbers are automatically entered in the associated boxes.
When you have entered all the necessary values, click OK.
Caution
(A) Less noticeable horizontal stripes
(B) More noticeable horizontal stripes
13. Click OK to adjust the head position.
Caution
