Confirming that the camera is level (Electronic Level) (PowerShot G7 X Mark II)

An electronic level can be displayed on the screen when shooting as a guideline to determine if the camera is level.

Caution

Using the Electronic Level

An electronic level can be displayed as a guideline to ensure the camerais level from front to back and left to right.

1. Turn the camera on.

2. Press the [ ] button several times to display the electronic level.

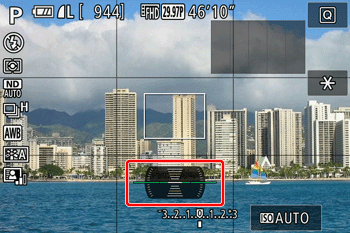

3. If the camera is tilted, move it so that the red level line changes to green.

indicates the front-back orientation and the left-right orientation.

Caution

If the electronic level is not displayed in step 2, press the [MENU] button and check the setting in [ ] tab [Shooting information display].

The electronic level is not displayed during movie recording.

If you hold the camera vertically, the orientation of the electronic level will be updated automatically to match the camera orientation.

Not available in [ ] mode.

Calibrating the Electronic Level

Calibrate the electronic level if it seems ineffective in helping you level the camera.

For greater calibration accuracy, display grid lines to help you level the camera in advance.

Caution

Press the [ ] button several times to display the grid lines.

If the grid lines are not displayed, press the [MENU ] button, and on the [ ] tab, choose [Shooting information display] to confirm the setting.

1. Place the camera on a flat surface, such as a table.

2. Press the [MENU] button

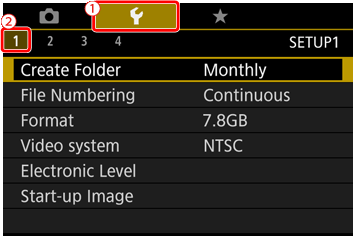

3. Choose the [ ] tab from the menu screen.

: Operate the zoom lever to choose the [ ] tab.

: Press the [ ] , [ ] buttons to choose [ ].

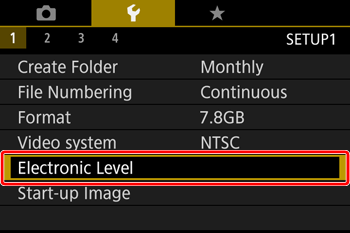

4. Press the [ ] , [ ] buttons to choose [Electronic Level], and then press the [ ] button.

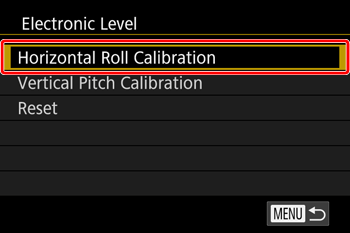

5. Press the [ ] , [ ] buttons to choose [Horizontal Roll Calibration], and then press the [ ] button.

Caution

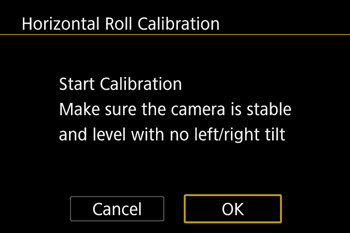

6. Press the [ ] , [ ] buttons to choose [OK], and then press the [ ] button.

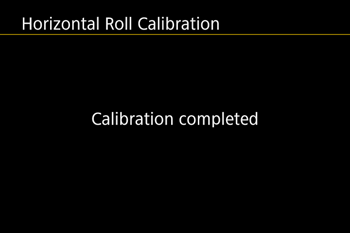

This concludes the electronic level calibration procedure.
