Solution
Connecting to a high-definition television equipped with an HDMI input terminalSome TVs may not output video properly. In that case, please use the component cable and the stereo video cable to connect the camcorder to the TV.
Connect the camcorder to a TV to enjoy your recordings with family and friends. Playback on an HDTV using one of the high-definition connections will ensure the best playback quality.
Caution
Connecting to a high-definition television equipped with an HDMI input terminal
Caution
About the HDMI connection
The HDMI (High-Definition Multimedia Interface) connection is a convenient all-digital connection using a single cable for both video and audio.
1. Connect the camcorder to the TV.
1-1.Turn off the camcorder and the TV.

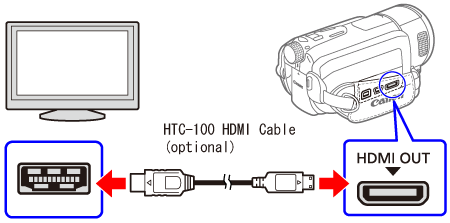

1-2. Use the HDMI cable to connect the camcorder to the TV.
2. Turn on the camcorder and the TV.
Turn on the camcoder and set it to the movie playback mode.
3.Press the ⋖ ⋗ button of the camcorder to play back video.
Caution
Some TVs may not output video properly. In that case, please use the component cable and the stereo video cable to connect the camcorder to the TV.
1.Complete the following operations on the camcorder before connecting to a high-definition TV.

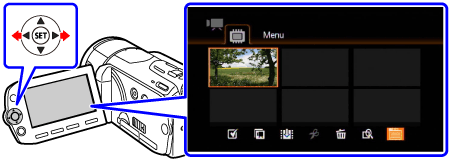

1-1.Press ⋖ ⋗ to set to the playback mode.
1-2.Press ⋖ ⋗ .
1-3.Select [ Menu ], and then press the ⋖ ⋗ button.
1-4.Select [ ] and then set the [Component Output] to [ 1080i ].
[Component Output] settings: If you connect the camcorder to a high-definition TV, and then select [ 1080i ].
1-5.Press ⋖ ⋗ button to end settings.
2.Connect the camcorder to a TV.
2-1.Turn off the camcorder.

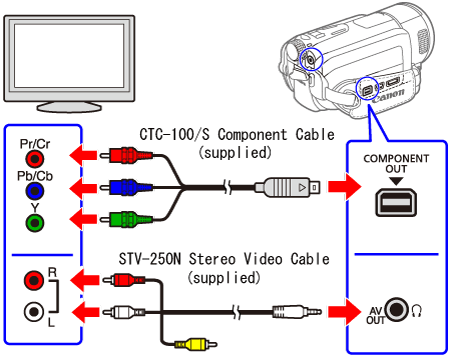

2-2.Use the component cable to connect the camcorder to the TV.
To output audio, use the stereo cable to connect the camcorder to the TV (insert terminals other than the yellow one).
3.Turn on the camcorder and the TV.
Turn on the camcoder and set it to the movie playback mode.
4.Press the ⋖ ⋗ button of the camcorder to play back movie.
Caution
Set [AV/Headphones] in the menu to [AV].
