How do I connect an external microphone?

When recording in very quiet surroundings, the built-in microphone may pick up the sound of the camcorder's internal machinery. In such case, we recommend using an external microphone.

Using the DM-100 Directional Stereo Microphone

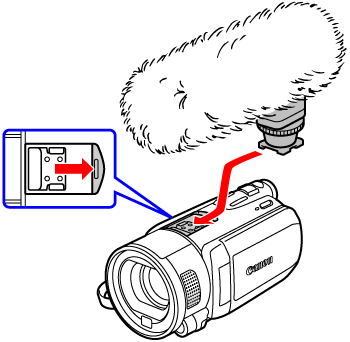

1.Retract the mini advanced shoe cover in the direction of the arrow.

2.Attach the optional DM-100 Directional Stereo Microphone to the mini advanced shoe.

[ ] appears. For details about using the microphone, refer to the instruction manual of the DM-100.

Caution

Accessories designed for the Advanced Accessory Shoe cannot be used with this camcorder. Look for video accessories bearing this logo to ensure compatibility with the mini advanced shoe.

When an external microphone is connected to the camcorder, [Wind Screen] will automatically be set to [Off ].

If the audio level is too high and the sound gets distorted, turn on the microphone attenuator or adjust the audio recording level manually.

Using other microphones

You can also use commercially available microphones. Connect the external

microphone to the MIC terminal. Use commercially available condenser microphones with their own power supply. You can connect almost any stereo microphone with a φ 3.5 mm plug but audio recording levels may vary.

Caution

When an external microphone is connected to the camcorder, [Wind Screen] will automatically be set to [Off ].

If the audio level is too high and the sound gets distorted, turn on the microphone attenuator or adjust the audio recording level manually.
