Copying

Making Copies

This section describes the procedure to copy a document of A4 size on plain paper.

You need to prepare:

Originals to copy.

Paper for printing.

See [ Media Types You Can Use ]

1. Prepare for copying.

(1) Make sure that the power is turned on.

(2) Press the COPY button.

The copy standby screen will appear.

(3) Load paper.

See [ Loading Paper ]

Here we make sure that A4 plain paper is loaded in the Rear Tray.

(4) Open the Paper Output Tray gently.

(5) Load an original on the Platen Glass or in the ADF.

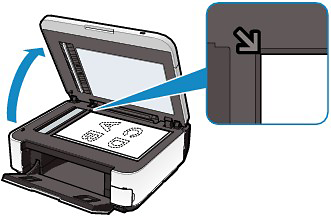

To load the original on the Platen Glass, align it with the alignment mark WITH THE SIDE TO COPY FACING DOWN as shown below.

Then close the Document Cover gently.

Caution

2. Start copying.

(1) Use the Numeric buttons to specify the number of copies.

(2) Use the or button (A) to specify the magnification.

Here we select 100%.

(3) Use the or button (B) to specify the copy intensity.

Press the button to decrease the intensity and the button to increase the intensity. You can also select automatic intensity adjustment.

(4) Press the right Function button (C) to select Print settings, and confirm the page size, media type, etc.

Here we confirm that A4 is selected for Page size and Plain paper for Type.

To change the settings, use the or button (Scroll Wheel) (A) to select the item to change, and use the or button (B) to select an option. After confirming or changing the settings, press the OK button to return to the copy standby screen.

Caution

(5) Press the Color button for color copying, or the Black button for black & white copying.

The machine starts copying.

Remove the original on the Platen Glass or the Document Output Slot after copying is completed.

Caution

Caution

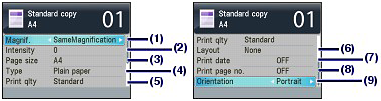

Changing the Settings

Press the right Function button to select Print settings on the copy standby screen. You can select the item, such as page size, media type, or print quality, and change the setting.

(1) Magnif. (Magnification)

Specify the enlargement/reduction manner. You can specify the copy scale by selecting the page size: A4 to A5, A4 to B5, etc. If you do not want to enlarge/reduce the page size, select SameMagnification.

(2) Intensity

Specify the intensity when you want to make the darkened/lightened copy. Select Auto to automatically adjust the intensity according to the original. When Auto is selected, the ADF is not available.

(3) Page size

Select the page size of the paper to print: A4, 8.5"x11" (LTR), etc.

(4) Type (Media type)

Select the media type of the paper to print: Plain paper, Plus Glossy II, etc.

Caution

(5) Print qlty (Print quality)

Select the print quality according to the original to copy: Standard, High, etc. The available print quality settings depend on the paper selected for Type.

(6) Layout

Select the layout: 2-on-1 copy or 4-on-1 copy.

(7) Print date

Print the current date in the upper right margin of paper, according to the orientation of the original.

Caution

(8) Print page no.

Print a sequential page number in the lower center margin of paper, according to the orientation of the original.

(9) Orientation

Select the orientation of the original to copy: Portrait or Landscp.

Caution

If 2-on-1 copy or 4-on-1 copy is selected, select A4 or 8.5"x11" (LTR) for Page size.

If Borderless copy is selected, select 8.5"x11" (LTR), A4, 4"x6" (10x15cm), or 5"x7" (13x18cm) for Page size and any types of paper except Plain paper for Type. You cannot make a borderless copy of the document loaded in the ADF. Load the original on the Platen Glass.

If Borderless copy is selected, slight cropping may occur at the edges since the copied image is enlarged to fill the whole page.

The settings of the print quality, automatic intensity adjustment, etc. are retained, and these settings will appear next time when the copy mode is selected even if the power is turned off and on. The settings of the page size and media type are retained and shared among the copy mode, fax mode, card mode, and template print.

If the combination of some setting items is invalid, the mark appears at the invalid item. Press the left Function button to select Error details and check the error message, then correct the settings.

If you select Fast with the media type set to Plain paper and the quality is not as good as expected, select Standard or High and then try copying again.

Using Useful Copy Functions

Choose the copy method according to your purpose.

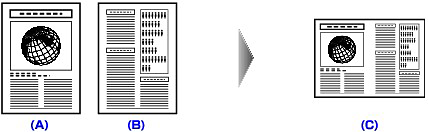

You can copy two original pages (A) (B) onto a single sheet of paper (C) by reducing each image.

1. Select 2-on-1 copy, then press the OK button.

The default setting for 2-on-1 copy is displayed. 2-on-1 copy is performed according to the settings on the LCD.

2. Confirm the instruction on the LCD, then press the OK button.

3. Specify the layout as necessary.

(1) Press the right Function button.

(2) Use the button to select Layout, then make sure that 2-on-1 copy is selected.

(3) Press the right Function button.

(4) Use the button to select the layout, then press the OK button.

(5) Press the OK button.

4. Press the Color button for color copying, or the Black button for black & white copying.

When Placing documents (platen) is displayed on the LCD, load another sheet of document to scan on the Platen Glass and press the OK button.

If you do not need more scanning, press the button to start copying.

The machine starts scanning the next sheet of document automatically after one sheet of document finishes being scanned.

Caution

If you loaded only one sheet of originals in the ADF, the machine performs 2-on-1 copy after scanning the first page. When loading originals on the Platen Glass, if you want to copy only the first sheet of originals, press the button after scanning the first page.

If Device memory is full. Cannot continue process. appears on the LCD when scanning, set the print quality to Standard or reduce the number of sheets of documents, then try copying again. If the problem is not resolved, set the print quality to Fast and try copying again.

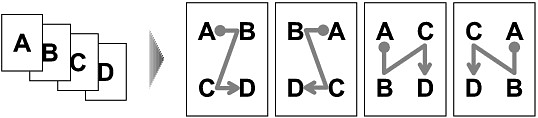

You can copy four original pages onto a single sheet of paper by reducing each image. For each orientation of the original document, four different layouts are available.

1. Select 4-on-1 copy, then press the OK button.

The default setting for 4-on-1 copy is displayed. 4-on-1 copy is performed according to the settings on the LCD.

2. Specify the layout as necessary.

(1) Press the right Function button.

(2) Use the button to select Layout, then make sure that 4-on-1 copy is selected.

(3) Press the right Function button.

(4) Use the button to select the layout, then press the OK button.

(5) Press the OK button.

3. Press the Color button for color copying, or the Black button for black & white copying.

When Placing documents (platen) is displayed on the LCD, load another sheet of document to scan on the Platen Glass and press the OK button.

If you do not need more scanning, press the button to start copying.

The machine starts scanning the next sheet of document automatically after one sheet of document finishes being scanned.

Caution

If you loaded less than four sheets of originals in the ADF, the machine performs 4-on-1 copy after scanning the last page. When loading documents on the Platen Glass, if you want to copy less than four sheets of originals, press the button after scanning the last page to copy.

If Device memory is full. Cannot continue process. appears on the LCD when scanning, set the print quality to Standard or reduce the number of sheets of documents, then try copying again. If the problem is not resolved, set the print quality to Fast and try copying again.

You can copy images so that they fill the entire page without borders.

1. Select Borderless copy, then press the OK button.

2. Press the Color button for color copying, or the Black button for black & white copying.

Caution

You can copy an image multiple times onto a single page. You can set the machine to automatically select the number of times it repeats the image, or you can specify the number.

1. Select Image repeat copy, then press the OK button.

2. Select the setting item displayed on the LCD.

Press the OK button to specify the setting.

3. Press the Color button for color copying, or the Black button for black & white copying.

Caution

You can obtain sorted printouts when making multiple copies of a multi-paged original.

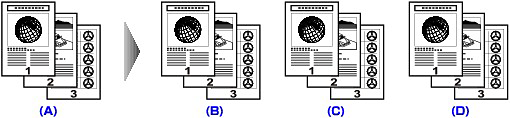

- Collated copy selected.

(A) Originals

(B) Copy 1

(C) Copy 2

(D) Copy 3

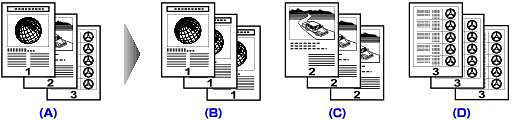

- Collated copy not selected.

(A) Originals

(B) Copy 1

(C) Copy 2

(D) Copy 3

1. Select Collated copy, then press the OK button.

2. Press the Color button for color copying, or the Black button for black & white copying.

Caution

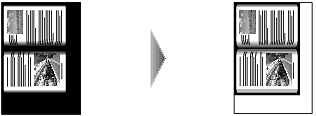

When copying thick originals such as books, you can make a copy without black margins around the image and gutter shadows. Using this function, you can reduce unnecessary ink consumption.

1. Select Frame erase copy, then press the OK button.

2. Press the Color button for color copying, or the Black button for black & white copying.

Caution

You can make stickers easily with the specified layout using Canon sticker paper.

1. Select Sticker copy, then press the OK button.

2. Confirm the instruction on the LCD, then press the OK button.

3. Make sure that Stickers x16 is selected, then press the OK button.

Caution

If any layout other than Stickers x16 is selected on the LCD, select Stickers x16 using the button.

4. Press the Color button for color copying, or the Black button for black & white copying.

Caution

You can copy the document with a margin for hole punching or binding.

1. Select Binding margin copy, then press the OK button.

2. Select the setting item displayed on the LCD.

Press the OK button to specify the setting.

3. Press the Color button for color copying, or the Black button for black & white copying.

Caution

When copying documents with punch holes, you can make a copy without punch hole marks.

1. Select Punch hole removal, then press the OK button.

2. Select the setting item displayed on the LCD.

Press the OK button to specify the setting.

3. Press the Color button for color copying, or the Black button for black & white copying.

Caution
