How to connect the machine to the computer (USB/wireless LAN/wired LAN)

Windows

1

Press the ON button (A) to TURN OFF THE MACHINE.

Operating noise may continue for up to 30 seconds until the machine turns off.

2

Turn on the computer, then insert the Setup CD-ROM into the CD-ROM drive.

If you are using Windows, the setup program starts automatically.

3 Windows 7/Windows Vista

Windows XP/Windows 2000 -⋗ 4

Click Run Msetup4.exe on the AutoPlay screen, then click Continue or Yes on the User Account Control dialog box.

If the User Account Control dialog box reappears in following steps, click Continue or Yes.

4

Select your place of residence, then click Next.

5

Select a country or region, then click Next.

6

Click Easy Install.

The drivers, application software, and on-screen manuals are installed all together.

7

Click Install.

8

Select Use the printer via USB, then click Next.

Follow any on-screen instructions to proceed with the software installation.

- Important Information for the Installation

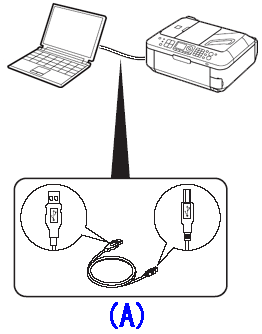

When the Printer Connection screen appears, connect the machine to the computer with the USB cable.

The USB Port is located on the back center of the machine.

The upper port is for USB.

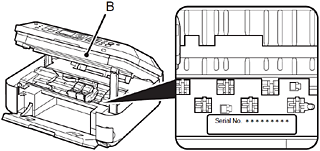

The product serial number is required when registering the product. The serial number is located inside the machine (as shown in the illustration).

If you can agree to Extended Survey Program, click Agree.

If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)

9

Click Exit to complete the installation.

If Restart is displayed, follow the instruction to restart the computer.

10

Solution Menu starts automatically.

Macintosh

1

Press the ON button (A) to TURN OFF THE MACHINE.

Operating noise may continue for up to 30 seconds until the machine turns off.

2

Turn on the computer, then insert the Setup CD-ROM into the CD-ROM drive.

If you are using Windows, the setup program starts automatically.

3

Double-click the Setup icon of the CD-ROM folder to proceed to the following screen. Enter your administrator name and password, then click OK.

If the CD-ROM folder does not open automatically, double-click the CD-ROM icon on the desktop.

If you do not know your administrator name or password, click the help button, then follow the on-screen instructions.

4

Select your place of residence, then click Next.

5

Select a country or region, then click Next.

6

Click Easy Install.

The drivers, application software, and on-screen manuals are installed all together.

7

Click Install.

8

Select Use the printer via USB, then click Next.

Follow any on-screen instructions to proceed with the software installation.

- Important Information for the Installation

When the Printer Connection screen appears, connect the machine to the computer with the USB cable.

The USB Port is located on the back center of the machine.

The upper port is for USB.

The product serial number is required when registering the product. The serial number is located inside the machine (as shown in the illustration).

If you can agree to Extended Survey Program, click Agree.

If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)

9

Click Exit to complete the installation.

If Restart is displayed, follow the instruction to restart the computer.

It is necessary to restart the computer before scanning using the Operation Panel on the machine for the first time.

10

Click the icon on the Dock to start Solution Menu.

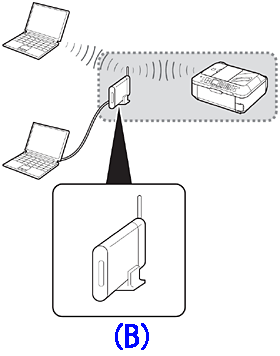

Wireless Setup

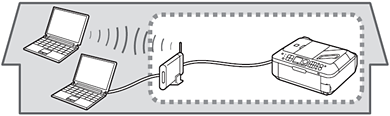

- Notes on Wireless Connection

An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without using an access point, is not supported. Be sure to prepare an access point.

Wireless Setup Using Easy Setup

The following information is required to connect to your access point or router.

Check your access point or router for the following information, then write it down.

- Access Point Name/Network Name:

* Also referred to as SSID.

An identifier to identify the specific access point.

- Network Key:

* Also referred to as encryption key, WEP key or WPA/WPA2 passphrase, Pre-Shared key.

A password required to set to prevent unauthorized access to communication.

1

Press the Setup button (A).

The Setup menu screen is displayed.

2

Use the or button (B) to select Wireless LAN setup, then press the OK button.

3

Use the or button (C) to select Yes, then press the OK button.

When wireless connection is enabled, the Wi-Fi lamp (D) lights blue.

4

Select Easy setup, then press the OK button.

5

Select the access point name you wrote down, then press the OK button.

6

When one of the above screens is displayed, enter the network key you wrote down using the Numeric buttons (E), then press the OK button.

If the above screen is not displayed, go to 8.

Press the button to switch character entry modes.

7

Make sure that the network key is correct, then press the OK button.

8

When the above screen appears, press the OK button.

The Setup menu screen returns.

9

Press the COPY button (F).

The copy standby screen is displayed.

Install the Software (Network Connection)

- Easy-WebPrint EX

If you are using Internet Explorer 7 or later, you can use the Web print software Easy-WebPrint EX. An internet connection is required for installation.

1

Turn on the computer, then insert the Setup CDROM into the CD-ROM drive.

If you are using Windows, the setup program starts automatically.

2 Windows 7/Windows Vista

Windows XP/Windows 2000 -⋗ 3

Click Run Msetup4.exe on the AutoPlay screen, then click Continue or Yes on the User Account Control dialog box.

If the User Account Control dialog box reappears in following steps, click Continue or Yes.

3

Select your place of residence, then click Next.

4

Select a country or region, then click Next.

5

Click Easy Install.

The drivers, application software, and on-screen manuals are installed all together.

6

Click Install.

7

Select Use the printer on network, then click Next.

Follow any on-screen instructions to proceed with the software installation.

8

When the Printer Detection screen appears, click Next.

9

When the Detected Printers List dialog box appears, select Canon MX350 series, then click Next.

10

When the Setup Completion dialog box appears, click Complete.

Install the Software (Information)

1

Click Next.

Follow any on-screen instructions to proceed with the software installation.

- Important Information for the Installation

The product serial number is required when registering the product. The serial number is located inside the machine (as shown in the illustration).

If you can agree to Extended Survey Program, click Agree.

If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)

2

Click Exit to complete the installation.

If Restart is displayed, follow the instruction to restart the computer.

3

Solution Menu starts automatically.

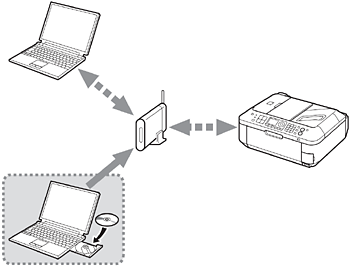

- Using the Machine from Additional Computers

Now that the wireless connection of the machine is complete, it can be used from additional computers on the same network.

Install software including the drivers on the computer from which you want to use the machine. Other settings are not required.

For the software installation procedure, refer to [ How to perform the wireless LAN setup so that other computers can share the same printer (Windows) ]

A: Computer from which the machine can be used currently

B: Additional computers on the same network

Wireless Setup

- Notes on Wireless Connection

An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without using an access point, is not supported. Be sure to prepare an access point.

Wireless Setup Using Easy Setup

The following information is required to connect to your access point or router.

Check your access point or router for the following information, then write it down.

- Access Point Name/Network Name:

* Also referred to as SSID.

An identifier to identify the specific access point.

- Network Key:

* Also referred to as encryption key, WEP key or WPA/WPA2 passphrase, Pre-Shared key.

A password required to set to prevent unauthorized access to communication.

1

Press the Setup button (A).

The Setup menu screen is displayed.

2

Use the or button (B) to select Wireless LAN setup, then press the OK button.

3

Use the or button (C) to select Yes, then press the OK button.

When wireless connection is enabled, the Wi-Fi lamp (D) lights blue.

4

Select Easy setup, then press the OK button.

5

Select the access point name you wrote down, then press the OK button.

6

When one of the above screens is displayed, enter the network key you wrote down using the Numeric buttons (E), then press the OK button.

If the above screen is not displayed, go to 8.

Press the button to switch character entry modes.

7

Make sure that the network key is correct, then press the OK button.

8

When the above screen appears, press the OK button.

The Setup menu screen returns.

9

Press the COPY button (F).

The copy standby screen is displayed.

Install the Software (Network Connection)

1

Turn on the computer, then insert the Setup CDROM into the CD-ROM drive.

If you are using Windows, the setup program starts automatically.

2

Double-click the Setup icon of the CD-ROM folder to proceed to the following screen. Enter your administrator name and password, then click OK.

If the CD-ROM folder does not open automatically, double-click the CD-ROM icon on the desktop.

If you do not know your administrator name or password, click the help button, then follow the on-screen instructions.

3

Select your place of residence, then click Next.

4

Select a country or region, then click Next.

5

Click Easy Install.

The drivers, application software, and on-screen manuals are installed all together.

6

Click Install.

7

Select Use the printer on network, then click Next.

Follow any on-screen instructions to proceed with the software installation.

8

When the Printer Detection screen appears, click Next.

9

On the Canon IJ Network Tool screen, select MX350 series in Printers, then click Next.

Install the Software (Registration)

This section describes how to register the machine on a Macintosh computer.

1

When the Register Printer and Scanner screen appears, click Register Printer.

- Proceed to the section that relates to your operating system for further installation instructions.

Mac OS X -⋗ v.10.6.x / v.10.5.x -⋗ Go to 2-A

Mac OS X -⋗ v.10.4.11 -⋗ Go to 2-B

2-A Mac OS X v.10.6.x/v.10.5.x

Mac OS X v.10.4.11 -⋗ 2-B

(1)

Select Canon MX350 series and click Add.

-⋗ Go to 3

2-B Mac OS X v.10.4.11

(1)

When the Printer List window appears, click Add.

(2)

Click More Printers in the Printer Browser window.

(3)

Select Canon IJ Network in the pop-up menu, select Canon MX350 series in the list of printers, then click Add.

(4)

Make sure that Canon MX350 series is added to the list of printers.

-⋗ Go to 3

3

When the Register Printer and Scanner screen appears, click Register Scanner.

4

Select Canon MX350 series on the Scan-from-PC Settings screen, then click OK.

5

Click Next on the Register Printer and Scanner screen.

Install the Software (Information)

1

Click Next.

Follow any on-screen instructions to proceed with the software installation.

- Important Information for the Installation

The product serial number is required when registering the product. The serial number is located inside the machine (as shown in the illustration).

If you can agree to Extended Survey Program, click Agree.

If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)

2

Click Exit to complete the installation.

If Restart is displayed, follow the instruction to restart the computer.

It is necessary to restart the computer same network before scanning using the Operation Panel on the machine for the first time.

3

Click the icon on the Dock to start Solution Menu.

- Using the Machine from Additional Computers

Now that the wireless connection of the machine is complete, it can be used from additional computers on the same network.

Install software including the drivers on the computer from which you want to use the machine. Other settings are not required.

For the software installation procedure, refer to [ How to perform the wireless LAN setup so that other computers can share the same printer (Macintosh) ]

A: Computer from which the machine can be used currently

B: Additional computers on the same network

Wireless Setup

- Notes on Wireless Connection

An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without using an access point, is not supported. Be sure to prepare an access point.

Wireless Setup Using WPS (Wi-Fi Protected Setup)

1

Press the Setup button (A).

The Setup menu screen is displayed.

2

Use the or button (B) to select Wireless LAN setup, then press the OK button.

3

Use the or button (C) to select Yes, then Press the OK button.

When wireless connection is enabled, the Wi-Fi lamp (D) lights blue.

4

Select Other setup, then press the OK button.

5

Select WPS, then press the OK button.

6

Select Push button method, then press the OK button.

7

Press the OK button.

8

Press and hold the WPS button on the access point (for about 5 seconds), then press the OK button on the machine within 2 minutes.

For details on the WPS button pressing, refer to the manual of your access point.

The Wi-Fi lamp (blue) flashes while searching for or connecting to an access point.

9

When the above screen appears, press the OK button.

The Setup menu screen returns.

10

Press the COPY button (E).

The copy standby screen is displayed.

Install the Software (Network Connection)

- Easy-WebPrint EX

If you are using Internet Explorer 7 or later, you can use the Web print software Easy-WebPrint EX. An internet connection is required for installation.

1

Turn on the computer, then insert the Setup CDROM into the CD-ROM drive.

If you are using Windows, the setup program starts automatically.

2 Windows 7/Windows Vista

Windows XP/Windows 2000 -⋗ 3

Click Run Msetup4.exe on the AutoPlay screen, then click Continue or Yes on the User Account Control dialog box.

If the User Account Control dialog box reappears in following steps, click Continue or Yes.

3

Select your place of residence, then click Next.

4

Select a country or region, then click Next.

5

Click Easy Install.

The drivers, application software, and on-screen manuals are installed all together.

6

Click Install.

7

Select Use the printer on network, then click Next.

Follow any on-screen instructions to proceed with the software installation.

8

When the Printer Detection screen appears, click Next.

9

When the Detected Printers List dialog box appears, select Canon MX350 series, then click Next.

10

When the Setup Completion dialog box appears, click Complete.

Install the Software (Information)

1

Click Next.

Follow any on-screen instructions to proceed with the software installation.

- Important Information for the Installation

The product serial number is required when registering the product. The serial number is located inside the machine (as shown in the illustration).

If you can agree to Extended Survey Program, click Agree.

If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)

2

Click Exit to complete the installation.

If Restart is displayed, follow the instruction to restart the computer.

3

Solution Menu starts automatically.

- Using the Machine from Additional Computers

Now that the wireless connection of the machine is complete, it can be used from additional computers on the same network.

Install software including the drivers on the computer from which you want to use the machine. Other settings are not required.

For the software installation procedure, refer to [ How to perform the wireless LAN setup so that other computers can share the same printer (Windows) ]

A: Computer from which the machine can be used currently

B: Additional computers on the same network

Wireless Setup

- Notes on Wireless Connection

An "Ad-hoc connection," which establishes a direct connection to the computer over a wireless connection without using an access point, is not supported. Be sure to prepare an access point.

Wireless Setup Using WPS (Wi-Fi Protected Setup)

1

Press the Setup button (A).

The Setup menu screen is displayed.

2

Use the or button (B) to select Wireless LAN setup, then press the OK button.

3

Use the or button (C) to select Yes, then Press the OK button.

When wireless connection is enabled, the Wi-Fi lamp (D) lights blue.

4

Select Other setup, then press the OK button.

5

Select WPS, then press the OK button.

6

Select Push button method, then press the OK button.

7

Press the OK button.

8

Press and hold the WPS button on the access point (for about 5 seconds), then press the OK button on the machine within 2 minutes.

For details on the WPS button pressing, refer to the manual of your access point.

The Wi-Fi lamp (blue) flashes while searching for or connecting to an access point.

9

When the above screen appears, press the OK button.

The Setup menu screen returns.

10

Press the COPY button (E).

The copy standby screen is displayed.

Install the Software (Network Connection)

1

Turn on the computer, then insert the Setup CDROM into the CD-ROM drive.

If you are using Windows, the setup program starts automatically.

2

Double-click the Setup icon of the CD-ROM folder to proceed to the following screen. Enter your administrator name and password, then click OK.

If the CD-ROM folder does not open automatically, double-click the CD-ROM icon on the desktop.

If you do not know your administrator name or password, click the help button, then follow the on-screen instructions.

3

Select your place of residence, then click Next.

4

Select a country or region, then click Next.

5

Click Easy Install.

The drivers, application software, and on-screen manuals are installed all together.

6

Click Install.

7

Select Use the printer on network, then click Next.

Follow any on-screen instructions to proceed with the software installation.

8

When the Printer Detection screen appears, click Next.

9

On the Canon IJ Network Tool screen, select MX350 series in Printers, then click Next.

Install the Software (Registration)

This section describes how to register the machine on a Macintosh computer.

1

When the Register Printer and Scanner screen appears, click Register Printer.

- Proceed to the section that relates to your operating system for further installation instructions.

Mac OS X -⋗ v.10.6.x / v.10.5.x -⋗ Go to 2-A

Mac OS X -⋗ v.10.4.11 -⋗ Go to 2-B

2-A Mac OS X v.10.6.x/v.10.5.x

Mac OS X v.10.4.11 -⋗ 2-B

(1)

Select Canon MX350 series and click Add.

-⋗ Go to 3

2-B Mac OS X v.10.4.11

(1)

When the Printer List window appears, click Add.

(2)

Click More Printers in the Printer Browser window.

(3)

Select Canon IJ Network in the pop-up menu, select Canon MX350 series in the list of printers, then click Add.

(4)

Make sure that Canon MX350 series is added to the list of printers.

-⋗ Go to 3

3

When the Register Printer and Scanner screen appears, click Register Scanner.

4

Select Canon MX350 series on the Scan-from-PC Settings screen, then click OK.

5

Click Next on the Register Printer and Scanner screen.

Install the Software (Information)

1

Click Next.

Follow any on-screen instructions to proceed with the software installation.

- Important Information for the Installation

The product serial number is required when registering the product. The serial number is located inside the machine (as shown in the illustration).

If you can agree to Extended Survey Program, click Agree.

If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)

2

Click Exit to complete the installation.

If Restart is displayed, follow the instruction to restart the computer.

It is necessary to restart the computer same network before scanning using the Operation Panel on the machine for the first time.

3

Click the icon on the Dock to start Solution Menu.

- Using the Machine from Additional Computers

Now that the wireless connection of the machine is complete, it can be used from additional computers on the same network.

Install software including the drivers on the computer from which you want to use the machine. Other settings are not required.

For the software installation procedure, refer to [ How to perform the wireless LAN setup so that other computers can share the same printer (Macintosh) ]

A: Computer from which the machine can be used currently

B: Additional computers on the same network

Wired Setup

- Notes on Wired Connection

1

Remove the Cap (A), then connect a network device (router, etc.) with an Ethernet cable (B).

2

Press the Setup button (C).

The Setup menu screen is displayed.

3

Use the or button (D) to select Device settings, then press the OK button.

4

Use the or button (E) to select LAN settings, then press the OK button.

5

Select Change wireless/wired, then press the OK button.

6

Select Wired LAN active, press the OK button.

The LAN settings screen returns.

7

Press the COPY button (F).

The copy standby screen is displayed.

Install the Software (Network Connection)

- Easy-WebPrint EX

If you are using Internet Explorer 7 or later, you can use the Web print software Easy-WebPrint EX. An internet connection is required for installation.

1

Turn on the computer, then insert the Setup CDROM into the CD-ROM drive.

If you are using Windows, the setup program starts automatically.

2 Windows 7/Windows Vista

Windows XP/Windows 2000 -⋗ 3

Click Run Msetup4.exe on the AutoPlay screen, then click Continue or Yes on the User Account Control dialog box.

If the User Account Control dialog box reappears in following steps, click Continue or Yes.

3

Select your place of residence, then click Next.

4

Select a country or region, then click Next.

5

Click Easy Install.

The drivers, application software, and on-screen manuals are installed all together.

6

Click Install.

7

Select Use the printer on network, then click Next.

Follow any on-screen instructions to proceed with the software installation.

8

When the Printer Detection screen appears, click Next.

9

When the Detected Printers List dialog box appears, select Canon MX350 series, then click Next.

10

When the Setup Completion dialog box appears, click Complete.

Install the Software (Information)

1

Click Next.

Follow any on-screen instructions to proceed with the software installation.

- Important Information for the Installation

The product serial number is required when registering the product. The serial number is located inside the machine (as shown in the illustration).

If you can agree to Extended Survey Program, click Agree.

If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)

2

Click Exit to complete the installation.

If Restart is displayed, follow the instruction to restart the computer.

3

Solution Menu starts automatically.

- Using the Machine from Additional Computers

Now that the wired connection of the machine is complete, it can be used from additional computers on the same network.

Install software including the drivers on the computer from which you want to use the machine. Other settings are not required.

For the software installation procedure, refer to [ How to perform the wired LAN setup so that other computers can share the same printer (Windows) ]

A: Computer from which the machine can be used currently

B: Additional computers on the same network

Wired Setup

- Notes on Wired Connection

1

Remove the Cap (A), then connect a network device (router, etc.) with an Ethernet cable (B).

2

Press the Setup button (C).

The Setup menu screen is displayed.

3

Use the or button (D) to select Device settings, then press the OK button.

4

Use the or button (E) to select LAN settings, then press the OK button.

5

Select Change wireless/wired, then press the OK button.

6

Select Wired LAN active, press the OK button.

The LAN settings screen returns.

7

Press the COPY button (F).

The copy standby screen is displayed.

Install the Software (Network Connection)

1

Turn on the computer, then insert the Setup CDROM into the CD-ROM drive.

If you are using Windows, the setup program starts automatically.

2

Double-click the Setup icon of the CD-ROM folder to proceed to the following screen. Enter your administrator name and password, then click OK.

If the CD-ROM folder does not open automatically, double-click the CD-ROM icon on the desktop.

If you do not know your administrator name or password, click the help button, then follow the on-screen instructions.

3

Select your place of residence, then click Next.

4

Select a country or region, then click Next.

5

Click Easy Install.

The drivers, application software, and on-screen manuals are installed all together.

6

Click Install.

7

Select Use the printer on network, then click Next.

Follow any on-screen instructions to proceed with the software installation.

8

When the Printer Detection screen appears, click Next.

9

On the Canon IJ Network Tool screen, select MX350 series in Printers, then click Next.

Install the Software (Registration)

This section describes how to register the machine on a Macintosh computer.

1

When the Register Printer and Scanner screen appears, click Register Printer.

- Proceed to the section that relates to your operating system for further installation instructions.

Mac OS X -⋗ v.10.6.x / v.10.5.x -⋗ Go to 2-A

Mac OS X -⋗ v.10.4.11 -⋗ Go to 2-B

2-A Mac OS X v.10.6.x/v.10.5.x

Mac OS X v.10.4.11 -⋗ 2-B

(1)

Select Canon MX350 series and click Add.

-⋗ Go to 3

2-B Mac OS X v.10.4.11

(1)

When the Printer List window appears, click Add.

(2)

Click More Printers in the Printer Browser window.

(3)

Select Canon IJ Network in the pop-up menu, select Canon MX350 series in the list of printers, then click Add.

(4)

Make sure that Canon MX350 series is added to the list of printers.

-⋗ Go to 3

3

When the Register Printer and Scanner screen appears, click Register Scanner.

4

Select Canon MX350 series on the Scan-from-PC Settings screen, then click OK.

5

Click Next on the Register Printer and Scanner screen.

Install the Software (Information)

1

Click Next.

Follow any on-screen instructions to proceed with the software installation.

- Important Information for the Installation

The product serial number is required when registering the product. The serial number is located inside the machine (as shown in the illustration).

If you can agree to Extended Survey Program, click Agree.

If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)

2

Click Exit to complete the installation.

If Restart is displayed, follow the instruction to restart the computer.

It is necessary to restart the computer same network before scanning using the Operation Panel on the machine for the first time.

3

Click the icon on the Dock to start Solution Menu.

- Using the Machine from Additional Computers

Now that the wired connection of the machine is complete, it can be used from additional computers on the same network.

Install software including the drivers on the computer from which you want to use the machine. Other settings are not required.

For the software installation procedure, refer to [ How to perform the wired LAN setup so that other computers can share the same printer (Macintosh) ]

A: Computer from which the machine can be used currently

B: Additional computers on the same network
