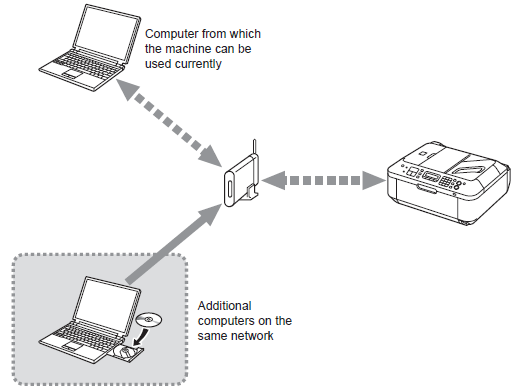

If the machine is already connected to a wireless connection, it can be used from
additional computers on the same network.
To use from additional computers
1.Insert the Setup CD-ROM into the computer from which you want to use the machine.
2.Follow the on-screen instructions to install the software.
Other settings are not required.
Install the Software
Caution
1.
Make sure that the machine is turned on and that the Wi-Fi lamp (A) lights blue.
Caution
It is not necessary to connect the machine to the computer with the Wireless LAN setup cable.
2.
Turn on the computer, then insert the Setup CD-ROM into the CD-ROM drive.
3.

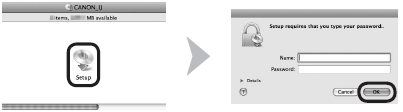

If the CD-ROM folder does not open automatically, double-click the CD-ROM icon on the desktop.
If you do not know your administrator name or password, click the help button, then follow the on-screen instructions.
4.
Select your place of residence, then click Next.
Caution
If the Select Language screen appears, select a language, then click Next.
5.
Select a country or region, then click Next.
Caution
Displayed only when Europe, Middle East, Africa or Asia is selected on the screen in 4.
6.
Click Easy Install.
The drivers, application software, and on-screen manuals are installed all together.
Caution
If you want to select particular items to install, click Custom Install.
7.
Click Install.
8.
Select Use the printer on network, then click Next.
Follow any on-screen instructions to proceed with the software installation.
9.
When the Printer Detection screen appears, click Next.
Caution
Follow on-screen instructions and proceed with the installation. Click Exit on the installation complete screen, then start again from 3 and be sure to select Use the printer on network in 8.
10.
Make sure the machine is turned on, then click OK.
11.
When the Detected Printers List dialog box appears, select Canon MX340 series, then click Next.
Caution
If the machine is not detected, Set Up New Printer dialog box is displayed. Refer to the printed manual: Network Setup Troubleshooting. Make sure there is no problem, then click Redetect.
12.
When the Setup Completion screen appears, click Complete or OK.
Install the Software (Registration)
This section describes how to register the machine on a Macintosh computer.
1.
When the Register Printer and Scanner screen appears, click Register Printer.
Mac OS X v.10.6.x -⋗ Go to 2-A
Mac OS X v.10.5.x -⋗ Go to 2-A
Mac OS X v.10.4.11 -⋗ Go to 2-B
Caution
- The machine is turned on.
- The firewall function of any security software is turned off.
- The computer is connected to the access point.
2-A (Mac OS X v.10.6.x/v.10.5.x)
(1)
Select Canon MX340 series and click Add.
-⋗ Go to 3
2-B (Mac OS X v.10.4.11)
(1)
When the Printer List window appears, click Add.
Caution
When the You have no printers available. screen appears, click Add.
(2)
Click More Printers in the Printer Browser window.
(3)
Select Canon IJ Network in the pop-up menu, select Canon MX340 series in the list of printers, then click Add.
(4)
Make sure that Canon MX340 series is added to the list of printers.
-⋗ Go to 3.
3.
When the Register Printer and Scanner screen appears, click Register Scanner.
4.
Select Canon MX340 series on the Scan-from-PC Settings screen, then click OK.
5.
Click Next on the Register Printer and Scanner screen.
Install the Software (Information)
1.
Click Next.
Follow any on-screen instructions to proceed with the software installation.
Important Information for the Installation
The product serial number is required when registering the product. The serial number is located inside the machine (as shown in the illustration).
Caution
If the power is on, the FINE Cartridge Holder will move when the Scanning Unit (Cover) (A) is opened.
If you can agree to Extended Survey Program, click Agree.
If you click Do not agree, the Extended Survey Program will not be installed. (This has no effect on the machine's functionality.)
2.
Click Exit to complete the installation.
If Restart is displayed, follow the instruction to restart the computer.
It is necessary to restart the computer before scanning using the Operation Panel on the machine for the first time.
Caution
3.
