PowerShot G3 X Support
FAQ and troubleshooting

Using an Android Smartphone to control the camera during remote shooting (PowerShot G3 X)

Content Id: 8202622200


You can check the shooting screen and shoot remotely using your smartphone.

Caution

In the following explanation, smartphone setting procedures are indicated by the icon, and camera setting procedures are indicated by the icon.
[ P ] mode is used for shooting in modes other than [ P ], [ Tv ], [ Av ], [ M ], [ C1 ], and [ C2 ]. However, some Quick Set and MENU settings you have configured in advance may be changed automatically.
Movie recording is not possible.
For convenience, Android™ smartphones, tablets and other compatible devices are collectively referred to as "smartphones".
In camera settings, the smartphone must be allowed to view camera images.
In order to use a smartphone to control the camera remotely, the Camera Connect application must be installed on the smartphone.

Getting Started

The procedure for using a smartphone to control the camera during remote shooting is explained in the following four steps. Proceed in order from Step 1.

Step 1: Confirming the OS version

Step 2: Installing Camera Connect on the smartphone

Step 3: Connecting the camera to the smartphone

Step 4: Using the smartphone to control the camera during remote shooting

Step 1: Confirming the OS version

1. Check the smartphone’s specifications.

To confirm the Android™ OS version information, check the [Settings] menu ( ) [About device] [Android version].

Caution

Please refer to the related information for details on the smartphones which can be connected with a camera wirelessly.

Caution

Turning off the sleep function of the smartphone is recommended.
The setting procedures and items may differ depending on the Android™ OS version installed on your smartphone.

Step 2: Installing Camera Connect on the smartphone

Download and install Camera Connect from Google Play™.

If Camera　Connect is already installed on the smartphone, please proceed to
Step 3: Connecting the camera to the smartphone.

Caution

The example procedure is shown on an Android™ smartphone installed with Android OS 4.0.
The example screen images from the smartphone are used to explain the setting procedures and may differ from the screens shown on other models. For more information on the model you are using, refer to your smartphone’s instruction manual.
Interface or functions of Camera Connect are subject to change, for application improvement or update. In such a case, features of Camera Connect may differ from sample screens or operation instructions in this explanation.

Caution

For an NFC-compatible Android™ smartphone (OS version 4.0 or later), activating NFC and touching the smartphone against the camera’s N-Mark () will start Google Play on the smartphone.

1. Touch the [Play Store] application on your smartphone to access Google Play™.

Caution

・The Camera Connect application is free, but separate connection charges for accessing Google Play™ may be applicable.

・A Google account is necessary to download Camera Connect.

・It is not possible to download Camera Connect to smartphones not equipped with GooglePlay™.

・Downloading the application via a cellular network may take longer than downloading via Wi-Fi.

2. Touch the search icon.

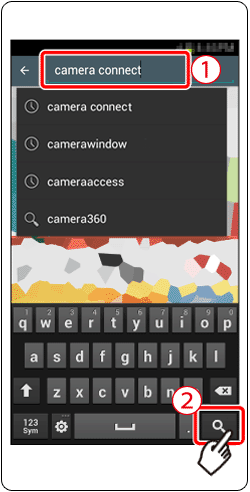

3. Enter [Camera Connect] in the search field, and then touch [Search].

4. Choose [Camera Connect] from the displayed search results, and install it on the smartphone.

After installation has been completed, tap the [Home] button to return to the Home Screen.

Step 3: Connecting the camera to the smartphone

1. Touch the menu key, and then touch [Settings] ().

2. Confirm that the smartphone is not set to [Airplane mode].

3. Set the [Wi-Fi] switch to [ON], and then touch [Wi-Fi].

Caution

Android™ OS 2.3:

1. Touch the menu key, and then touch [Settings].

2. Touch [Wireless and networks], and then append [Wi-Fi] with a check.

3. Touch [Wi-Fi settings].

4. Secure the camera.

・Once remote shooting begins, the camera lens will come out. Lens motion from zooming may also move the camera out of position. Keep the camera still by mounting it on a tripod or taking other measures.

5. Press the [Playback] () button to turn the camera on.

6. Press the [Wi-Fi] () button.

Caution

When setting up Wi-Fi for the first time, the camera nickname registration screen will be displayed.

　

This nickname will be displayed on [Select a Device] screen when connecting to other devices via Wi-Fi.

If the [Device Nickname] screen is displayed, press the [ ], [ ] buttons to choose [OK], and then press the [ ] button.

You can change the device nickname (display name) that is displayed on the camera. To change the nickname, press the [ ], [ ] buttons to choose [Change Device Nickname] and press the [ ] button. Then, select the input field and press the [ ] button. Use the keyboard displayed to enter a new nickname.

7. Press the [ ], [ ], [ ], [ ] buttons to choose [ ], and then press the [ ] button.

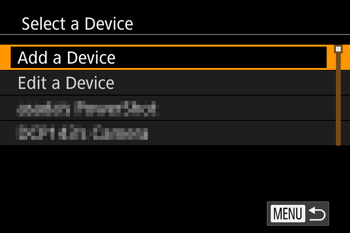

8. Press the [ ], [ ] buttons to choose [Add a Device], and then press the [ ] button.

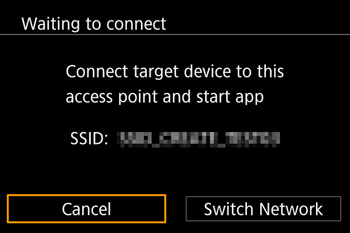

9. The camera’s SSID is displayed on the screen.

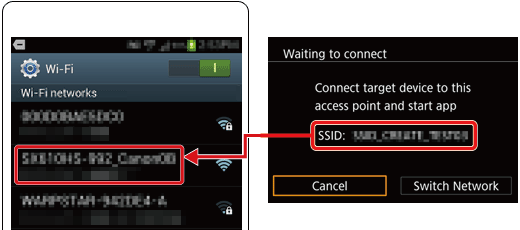

10. Choose the SSID (network name) displayed on the camera’s screen from the list of detected access points displayed on the smartphone.

Caution

For better security, you can require password input by accessing MENU and choosing [ 4] tab [Wi-Fi Settings] [Password] [On]. In this case, enter the password displayed on the camera in the password field on the smartphone when it is displayed.

After confirming that the smartphone and the camera are connected, touch the [Home Button] to return to the [Home Screen].

11. Tap the [Canon CC] application icon () on the smartphone to start Camera Connect.

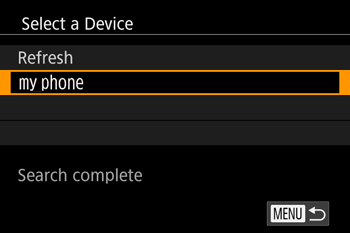

12. Press the [ ], [ ] buttons to choose the smartphone 's nickname, and then press the [ ] button.

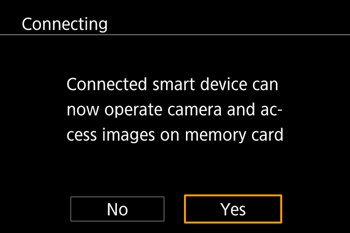

13. Press the [ ], [ ] buttons to choose [Yes], and then press the [ ] button.

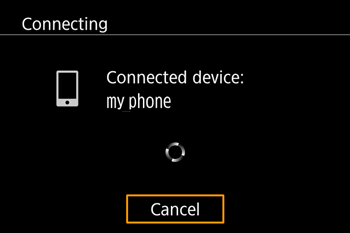

14. The following screen appears.

15. Once you have connected to the smartphone, a screen like the one below will appear.

Step 4: Using the smartphone to control the camera during remote shooting

1. In Camera Connect on the smartphone, choose [Remote shooting].

Caution

The camera lens will come out. Do not press near the lens, and make sure no objects will obstruct it.

2. Once the camera is ready for remote shooting, a live image from the camera will be displayed on the smartphone. At this time, a message is displayed on the camera, and all operations except pressing the power button are disabled.

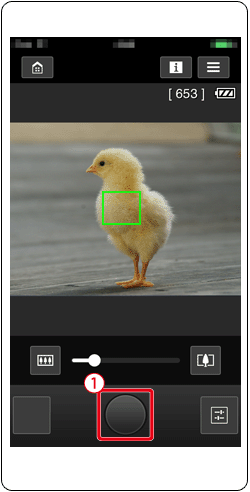

3. Use the smartphone to control the camera. Press the button to shoot.

Caution

Any jerky subject motion shown on the smartphone due to the connection environment will not affect recorded images.
Captured images are not transferred to the smartphone. Use the smartphone to browse and import images from the camera.
Remote control is also possible from the smartphone assigned to the [ ] button.

*Android™, and Google Play™ are trademarks of Google Inc.
