LEGRIA HF G30 Support
FAQ and troubleshooting

Adding Cinema-Look Filters to Recorded Scenes

Content Id: 8201869500


Solution

You can add Cinema-Look filters to AVCHD and MP4 movies saved to a memory, and save them to the other memory card.

The movies will be saved in MP4.

Caution

The effects of Cinema-look filters applied during shooting and those applied when converting to MP4 may differ.

The procedure for adding Cinema-Look filters to recorded scenes is explained below.

1. Set the power switch to MEDIA.

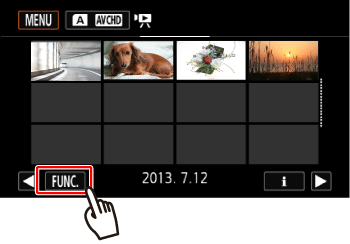

Open the desired movie index screen.

2. Touch [ ].

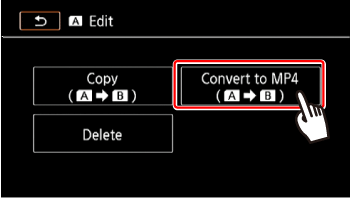

3. Touch [Convert to MP4 [ ] or [Convert to MP4 [ ].

*The menu for copying from the memory card used for playback to the other memory card will be displayed.

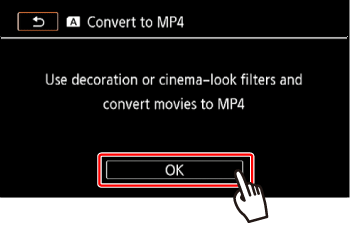

4. Touch [OK].

5. Select the desired video quality of converted movies.

Caution

Before selecting the video quality, touch [Join Scenes] to join the converted movies into one movie.

6. Touch the individual scenes you want to add the filters to.

A checkmark will appear on the scenes you touch. The total number of selected scenes will appear next to the .

Caution

To remove all checkmarks at once, touch [Remove All] ⋗ [Yes].

7. Touch [OK].

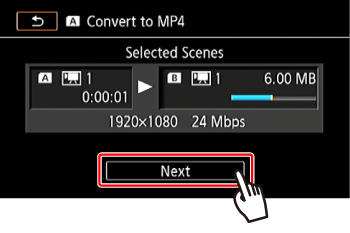

8. Touch [Next].

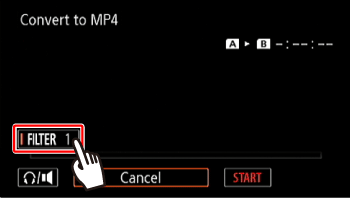

9. Touch [FILTER1].

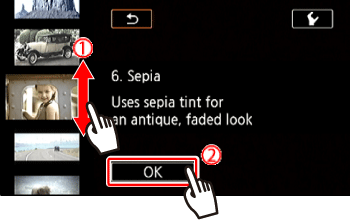

10. Select the filter you want to add, and then touch [OK].

Caution

To Remove the filter, touch [FILTER1-9].

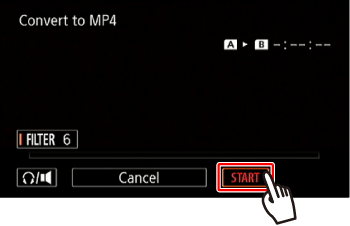

11. Touch [START] to convert the scene.

Caution

Touch [STOP] to interrupt the operation while it is in progress.

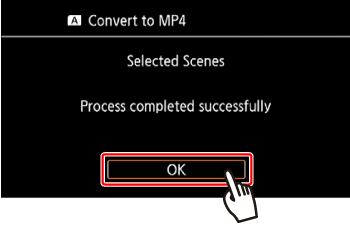

12. Touch [OK].

・Based on the following options, movies will be converted and then copied .

Recording mode before conversionVideo quality options
AVCHDMP4
28 Mbps LPCM (50.00P),28 Mbps (50.00P)35 Mbps (50.00P) Cannot be converted
24 Mbps LPCM, 17 Mbps, 5 Mbps 24 Mbps, 17 Mbps 24 Mbps, 17 Mbps, 4 Mbps, 3 Mbps
4 Mbps 4 Mbps, 3 Mbps
3 Mbps 3 Mbps

● While converting movies, video and audio signals will not be output from the camcorder's terminals.

This concludes the procedure for adding Cinema-Look filters to recorded scenes.
